- Temperature Stability: ±1.0°
- Temperature Uniformity: within 5% of the temperature setpoint.
- Heat-Up Time: 45 minutes to preheat. Optimal saturation reached in 120 minutes.
- Ultimate Vacuum: <500 µmHg / mTorr / micron
- Time to Vacuum: 4 minutes to 29"Hg using our VE Series 4cfm Dual Stage Vacuum Pump.
- Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.
|
Electrical |
Voltage |
110V |
|
Frequency |
60Hz |
|
|
Power |
700W |
|
|
Current |
6A |
|
|
Internal Chamber |
Heating |
Superior 5 Wall Heating (left, right, top, bottom, rear) |
|
Chamber Material |
Stainless Steel |
|
|
Dimensions (LxWxH) |
14.25" x 13.625" x 16.25" |
|
|
Vacuum Gauge |
Style |
Glycerin-filled for accuracy and longevity |
|
Range (units) |
-30 to 0 (inHg) / -1 to 0 (bar) |
|
|
Shelving |
Ships With |
11 Slide-in Shelves |
|
Shelf Dimensions (LxW) |
13" x 15" |
|
|
Shelf Capacity |
195 in2 |
|
|
Total Shelf Capacity |
2145 in2 / 14.9 ft2 |
|
|
Door |
Seal |
Silicone on Tempered Glass |
|
Window Dimensions (LxH) |
15.25" x 12.75" |
|
|
Lights |
4 strips of LEDs provide clear, bright view of interior |
|
|
Handle |
No plastic, all metal parts for lifetime durability |
|
|
Exterior |
Dimensions (LxWxH) |
28.5" x 23" x 22" |
|
Weight |
160 lbs |
|
|
Support |
Footmaster-style Leveling Casters |
|
|
Safety |
Electrical |
Built-in, resettable, overcurrent circuit breaker |
|
Thermal |
Automatic overtemperature shutoff |
|
|
Compliance |
CE |
CE Listing Recognized |
|
ISO |
ISO 9001:2008 / 13485:2003 |
|
|
IEC |
IEC68-2-3 |
|
|

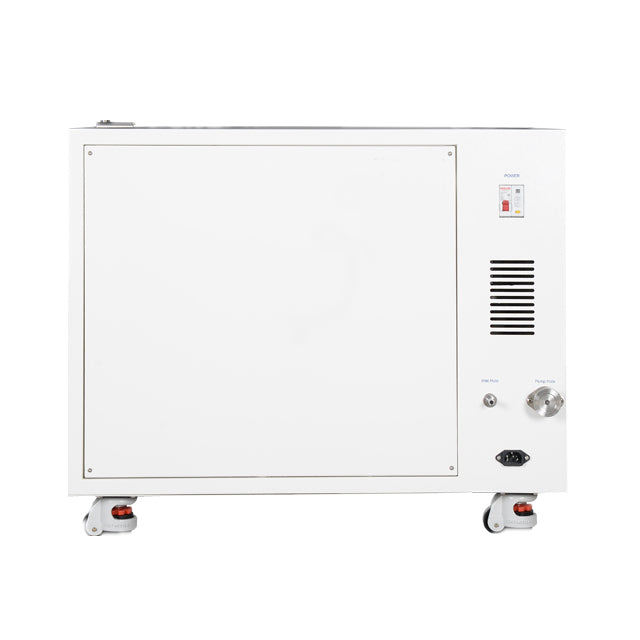

Connections |
Vacuum Inlet |
KF25 / NW25, quarter-turn valve |
|
Purge Inlet |
5/16" Barbed, 10-turn valve |
|
|
Atmospheric Release |
Quick-release dial |
|
|
Vacuum Pump |
Sold Separately. |
|
|
Recommended Pump |
VE Series 4cfm Dual Stage Vacuum Pump |
|
|
Warranty |
1 Year |
